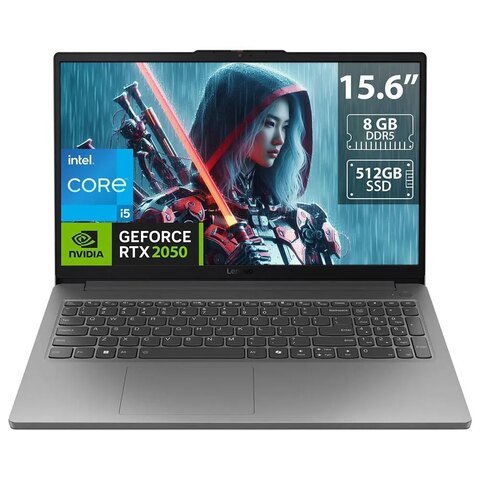

LOQ 15IAX9E 83LK0001US

PERFORMANCE
Processor
Intel® Core™ i5-12450HX, 8C (4P + 4E) / 12T, P-core up to
4.4GHz, E-core up to 3.1GHz, 12MB
AI PC Category[1]
AI-Powered Gaming PC
Graphics
NVIDIA® GeForce RTX™ 2050 4GB GDDR6, Boost Clock
1575MHz, TGP 65W
Chipset
Intel® HM670 Chipset
Memory[2]
1x 8GB SO-DIMM DDR5-4800
Memory Slots
One DDR5 SO-DIMM slot
Max Memory
Up to 32GB DDR5-4800
Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot
Two M.2 2242 PCIe® 4.0 x4 slots
Max Storage Support[3]
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB each
Optical
None
Card Reader
3-in-1 Card Reader
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, optimized with Nahimic Audio
Microphone
2x, Array
Camera
HD 720p with Privacy Shutter
Battery
57Wh
Power Adapter
135W Slim Tip (3-pin)
DESIGN
Display[4]
15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB,
144Hz
Touchscreen
None
Screen-to-Body Ratio
88% AAR (active area ratio)
Color Calibration
None
Pen
Pen Not Supported
Keyboard
Non-backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports
Precision TouchPad (PTP), 69 x 104 mm (2.72 x 4.09 inches)
Dimensions (WxDxH)[5]
359.3 x 236 x 19.9-22.95 mm (14.15 x 9.29 x 0.78-0.90 inches)
Weight[6]
Starting at 1.77 kg (3.9 lbs)
Case Color
Luna Grey
Case Material
PC-ABS (Top), PC-ABS (Bottom)
Surface Treatment
IMR (In-Mold Decoration by Roller)
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial
CONNECTIVITY
WLAN + Bluetooth®
Wi-Fi® 6, 802.11ax 2x2 + BT5.2
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)
Standard Ports
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)•
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), data transfer only•
1x HDMI® 2.1, up to 8K/60Hz•
1x Headphone / microphone combo jack (3.5mm)•
1x Ethernet (RJ-45)•
1x Card reader•
1x Power connector•
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
Camera privacy shutter
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
None
ACCESSORIES
Bundled Accessories
None
