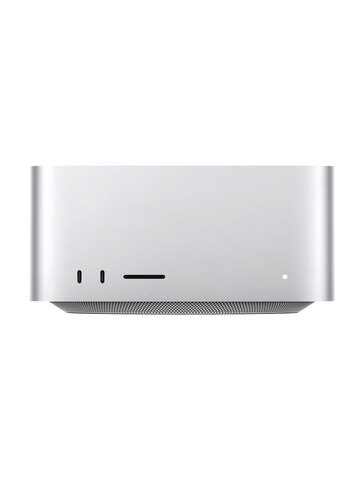

Apple Mac Studio M2 Max Specs


Key Specs
Model Year
Mid 2023
Processor
Apple M2 Max
GPU
Apple (30-Core)
Total Installed Memory
32 GB
Total Installed Capacity
1 TB
Inputs/Outputs
2x USB-A 3.0 / 3.1/3.2 Gen 1
4x USB-C (Thunderbolt 4) / Supports Video Alt Mode
2x USB-C 3.1/3.2 Gen 2
Display I/O
1x HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Wi-Fi
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth
5.3
Keyboard
No
Pointing Device
No
Model Year
Mid 2023
Processor
Apple M2 Max
CPU
12-Core:
Performance (8 Cores)
Efficiency (4 Cores)
Graphics Type
Integrated
GPU
Apple (30-Core)
Memory Type
Embedded DRAM
Total Installed Memory
32 GB
Memory Configuration
32 GB (Onboard)
Total Installed Capacity
1 TB
Storage Drive Type
1x 1 TB / Integrated NVMe SSD
PCI Expansion
No
Inputs / Outputs
Inputs/Outputs
2x USB-A 3.0 / 3.1/3.2 Gen 1
4x USB-C (Thunderbolt 4) / Supports Video Alt Mode
2x USB-C 3.1/3.2 Gen 2
Display I/O
1x HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Network I/O
1x RJ45 (10Gb Ethernet)
Built-In Speakers
Yes
Built-In Microphones
No
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC (UHS-II)
Communications
Wi-Fi
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth
5.3
Keyboard & Mouse
Keyboard
No
Pointing Device
No
General
Power Supply
370 W with IEC
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Operating Temperature
50 to 95°F / 10 to 35°C
Operating Humidity
5 to 95%
Certifications
ENERGY STAR
Dimensions
7.7 x 7.7 x 3.7" / 19.6 x 19.6 x 9.4 cm
Weight
5.9 lb / 2.7 kg
Packaging Info
Package Weight
11.93 lb
Box Dimensions (LxWxH)
13.4 x 12.4 x 9.6"
